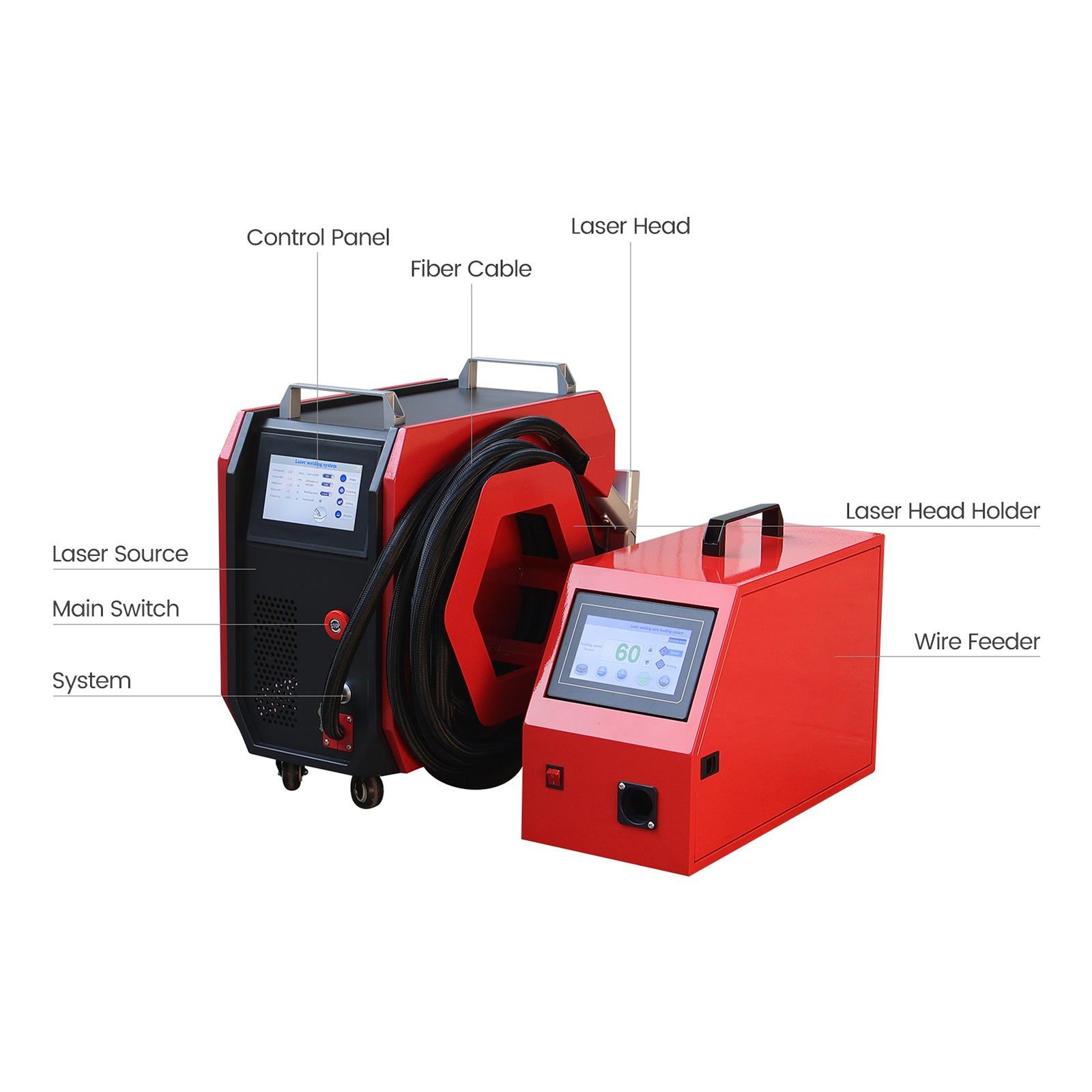

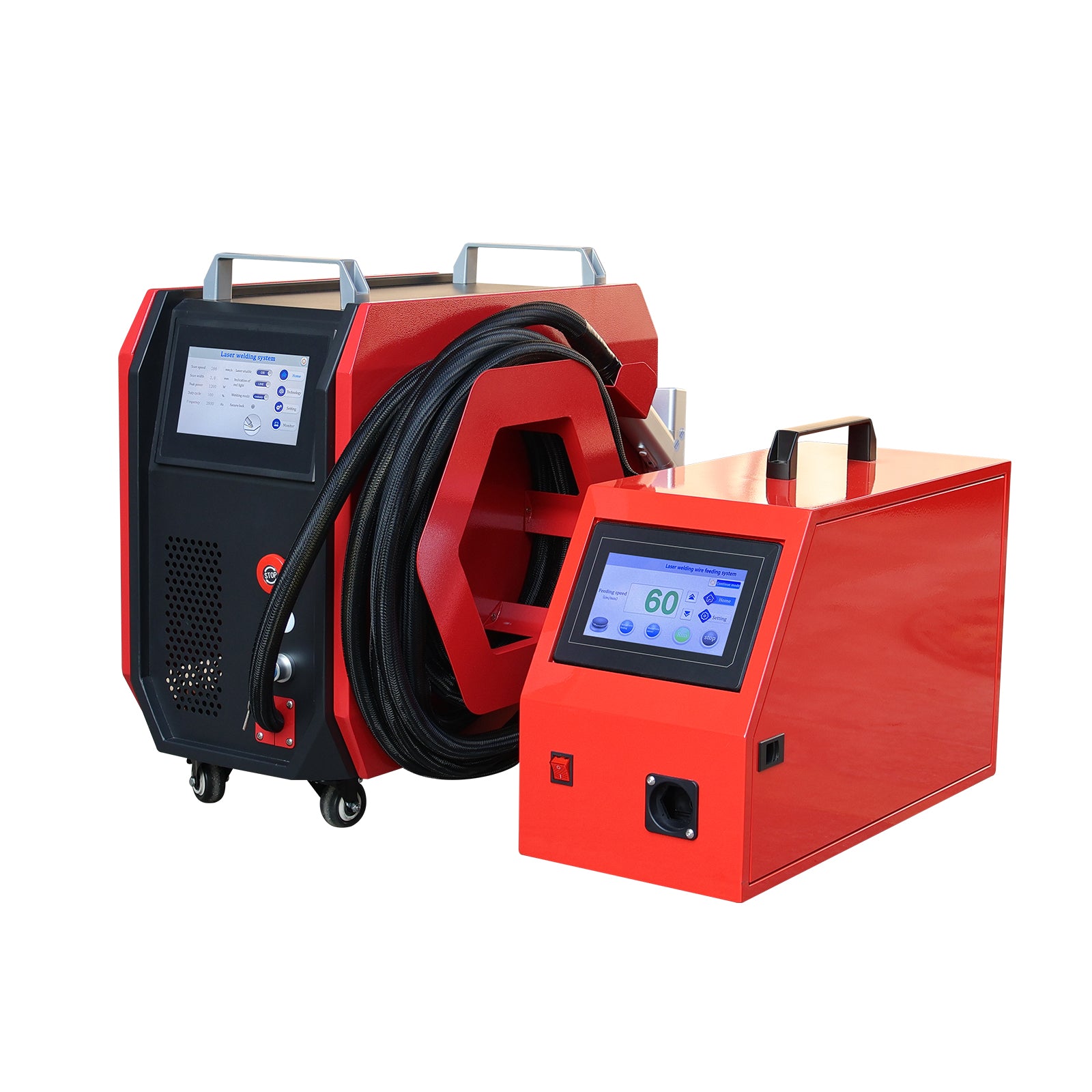

Triumph 4-in-1 Air Cooling Portable Laser Welder combines laser welding, cutting and cleaning in one compact machine. Featuring an air-cooled design with no water chiller required, it offers stable performance, low maintenance and easy operation. Ideal for stainless steel, carbon steel and aluminum, this portable laser welding solution is perfect for workshops, factories and on-site metal fabrication.
Advantages of Air Cooled Laser Welding Machine
✅ No Water Chiller Required
Say goodbye to heavy and expensive water tanks. The built-in air-cooling system keeps the laser at optimal temperature without water circulation.
✅ Compact & Lightweight Design
Save workspace and enjoy easy mobility. Ideal for small workshops or on-site welding.
✅ Energy-Saving & Eco-Friendly
Reduced power consumption, lower maintenance costs, and no water waste.
✅ Stable & Precise Welding Performance
Ensure consistent, high-quality welds with minimal thermal distortion.
✅ Easy to Operate
User-friendly interface and plug-and-play setup — no complex installation needed.
Laser Weldig Cleaning and Cutting All In One
How Thick of Metal Materials can A Laser Welder Weld?
| Laser Power | Stainless Steel | Carbon Steel | Iron | Aluminum | Galvanized Sheet |
| 1300W | 4mm | 3mm | 3mm | 3mm | 3mm |
| 1700W | 5.5mm | 4.5mm | 4.5mm | 4mm | 4.5mm |
Lightweight, Energy-saving, and Highly Portable
The Application of Laser Welding Machine
The mini handheld laser welding machine has a wide range of applications across various industries. Some common applications include:
- Automotive Industry: The mini handheld laser welding machine is used for welding car body components, exhaust systems, fuel tanks, and other automotive parts, providing precise and reliable welds.
- Electronics Industry: It is used for welding electronic components, such as connectors, circuit boards, sensors, and batteries, ensuring high-quality and durable connections.
- Jewelry Making: The mini handheld laser welding machine is used in the jewelry industry for intricate welding tasks, such as repairing jewelry, attaching clasps, and joining delicate components without damaging the surrounding areas.
- Medical Device Manufacturing: It is employed in the production of medical devices, such as surgical instruments, implants, and dental tools, enabling precise and controlled welding for critical applications.
- Aerospace Industry: The mini handheld laser welding machine is utilized for welding aerospace components, including turbine blades, engine parts, and structural elements, ensuring strong and reliable joints with minimal heat-affected zones.
- Metal Fabrication: It finds applications in general metal fabrication processes, such as joining sheet metal, pipes, and tubes, enabling efficient and accurate welding for various structural and decorative purposes.
- Tool and Die Making: The mini handheld laser welding machine is used for repairing molds, dies, and tooling, enabling localized welding and minimizing the need for extensive rework or replacement.
- Art and Design: It is utilized by artists and designers for creating metal sculptures, customized metal artwork, and decorative metal pieces, providing precise control over welding and minimizing distortion.
- Electronics Repair: The mini handheld laser welding machine is used for repairing electronic devices, such as smartphones, tablets, and laptops, enabling precise welding on small components and connectors.
- Precision Manufacturing: It finds applications in precision manufacturing processes, including micro-welding tasks, such as welding tiny electronic components, sensors, and optical devices.
These are just a few examples of the diverse applications of the mini handheld laser welding machine. Its versatility, precision, and ease of use make it a valuable tool in various industries that require efficient and high-quality welding.
Traditional Welding VS Laser Welding
| PROJECT | TIG/MIG | Triumph laser welding machine |
| Labor cost | Difficult to recruit and high salary. | Simple operation and low labor cost. |
| Disease | Frequent occupational diseases and serious physical injuries. | Less radiation, only need protective glasses to filter strong light. |
| Speed | Slow speed, low efficiency. | 4-10 times faster than traditional welding |
| Hot zone | Large | Small |
| Deformation | Easy to deform | Not easy to deform |
| Quality | The weld is thick and irregular, and needs polishing | Fine and beautiful welds, high welding strength |
| Damage | There is air hole and it is easy to weld through. | Welding is uniform and consistent. |
| Application | Limited by consumables | Wide application range |
| Master | Professional welders are required. | 30 minutes of learning can be mastered skillfully. |
System Simplicity Intelligent Machining
The new hand-held laser welding machine adopts industrial LED touch screen and intelligent operating system, which supports simple operation mode, easy to learn and easy to operate. Basic training can be learned in 30 minutes, effectively reducing labor costs.
With matching process parameters, users can quickly select welding parameters according to different materials and thicknesses, and novices can also weld high-quality and consistent welds.
Handheld Laser Welding Head
A handheld laser welding head is a compact and portable device used for precision welding applications. These devices are designed for ease of use and maneuverability in various welding scenarios.
Small Size: Handheld laser welding heads are known for their small and lightweight design, making them easy to handle and suitable for welding in tight spaces or for intricate welding tasks.
Applications: Handheld laser welding heads find applications in various industries, including automotive, aerospace, electronics, and jewelry making, where precision welding is crucial.
Versatility: Handheld laser welding heads can be versatile, even offering multiple functions, like welding, cleaning, cutting, and seam cleaning
Personnel entering the welding area must wear all personal protective equipment, including heat-resistant and flame-retardant gloves, hats, clothing and accessories, to ensure that the working area is free of flammable and explosive substances.
Nozzle of Handheld Laser Welding Head
Videos
Technical Parameters
| Laser wavelength | 1080nm |
| Working mode | Continuous |
| Output power/rated power | 1300W/1700W |
| Input voltage | AC 220V ±10%, 50/60Hz |
| Swing width | 0~5mm |
| Swing frequency | 1-30Hz |
| Welding gun interface | QBH |
| Cleaning width | 120mm |
| Output power(%) | 15-100 |
| Cable length | 10m |
| Beam Quality | 1.2M² |
| Operating temperature | -20°C-45°C |
| Cooling method | Air cooling |
| Machine Dimension | 580×300×600mm(22.8″×11.8″×23.6″) |
| Net weight /Gross weight | 60kg/100kg |
Packing List
Frequently Asked Questions
What is the power of this laser welding machine?
This model is available in two configurations: 1300W and 1700W.
Is it easy for beginners?
Yes. The machine features:
- An intuitive touchscreen control system
- Preset welding parameters
- User-friendly interface
- Minimal training requirements
Most operators can become proficient within a few hours.
Do you support worldwide shipping?
Yes, we ship globally and provide overseas warehouse delivery.
Does the machine support multiple functions?
Yes. the machine support 4-in-1 functionality, including:
- Laser Welding
- Laser Cleaning
- Laser Cutting
- Weld Seam Cleaning
What are the power and voltage requirements?
- Power Supply:Single-phase 220V , 50/60Hz
- 1300W total Power Consumption: Approximately 4–5 kW
- 1700W total Power Consumption: Approximately 5–6 kW
What cooling system does the machine use?
Air cooling
What shielding gases are recommended?
Common shielding gases include:
- Nitrogen (N₂): Clean and oxidation-free welds
- Argon (Ar): High-quality and stable welding
- Compressed Air:Cost-effective for certain applications
What is the expected lifespan of the laser source?
The fiber laser source has a service life of up to 100,000 hours, ensuring long-term reliability and low maintenance costs.
How thick a material can it weld?
Taking stainless steel as an example,
1300W can weld up to 3mm thick.
1700W can weld up to 4mm thick.
What warranty do you offer?
The machine comes with a 2-year warranty.
Consumable parts such as laser protective lenses and focusing lenses are not covered.
