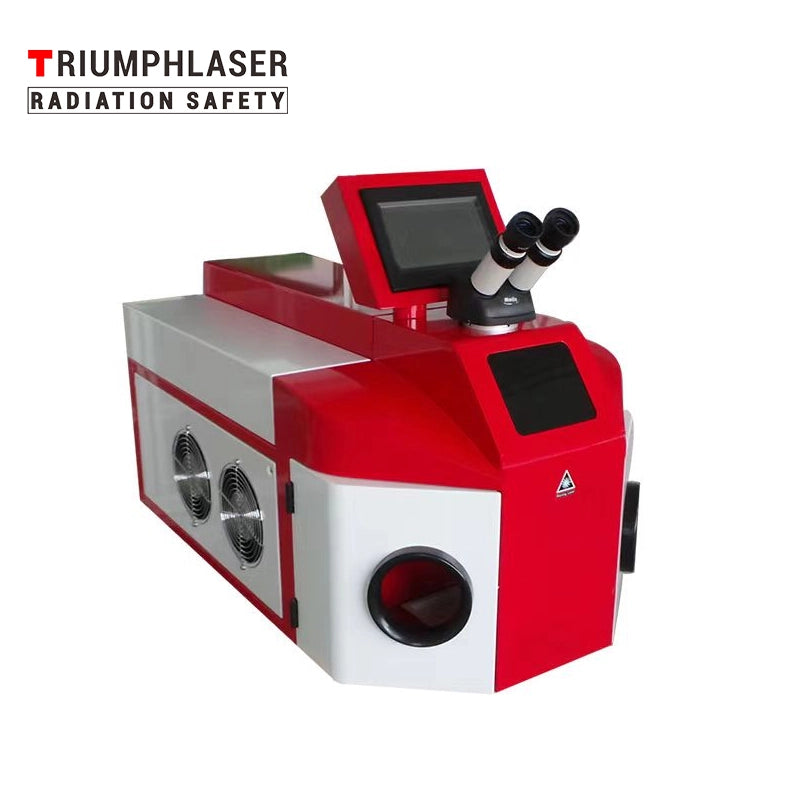

This model jewelry laser welding machine is perfectly suited for Jewelers . The Triumphlaser was not only developed for laser experts but also for technicians intending to simply bond metal to metal. The use of this laser system is quick and easy to learn and you will have the support of our Triumph Laser Team.
The jewelry laser welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine’s unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.
Features of Laser Welding Machine
1. Red point fast positioning, CCD display, microscope optional.
2. Adjustable working table allows welding from small size to big size of work piece.
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to weld with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position.
9. New metal processing (laser welding) technology brings higher quality of end.
10.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option.
Applications of Laser Welding Machine
The laser spot welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments hole and spot welding sand holes, can also be used for cold work high alloy steel, hot forging high alloy steel, nickel tool steel, advanced Steel, copper alloy, brass, copper, high-toughness aluminum alloy welding and other metal welding materials.
Technical Laser Welding Machine
| Model | TR-YLW |
| Laser type | Nd3+:YAG |
| Laser Wavelength | 1.064μm |
| Laser Power | 200W |
| Maximum single pulse power | ≥80J |
| Pulse Width | 0.2~15ms adjustable |
| Pulse Repeated Frequency | 1~20Hz adjustable |
| Beam Diameter | 0.2-1.5mm |
| Observing System | Microscope |
| Pump lamp | Pulsed Xenon lamp |
| Language Display | Chinese/English |
| Cooling System | Water cooling |
| Power Consumption | ≤18KW |
| Power Supply | 220V /50Hz(110V/60Hz) |
| Welding Chamber Dimensions | 300mm*450*150mm(L*W*H) |
| Machine Dimensions | 920*560*1220mm(L*W*H) |
| Running Environment | 5°C-30°C, 5%-75% humidity |
| Packing Size | 106×64×83cm(41.7"×25.2"×32.7") |
| Gross Weight | 110kg |
